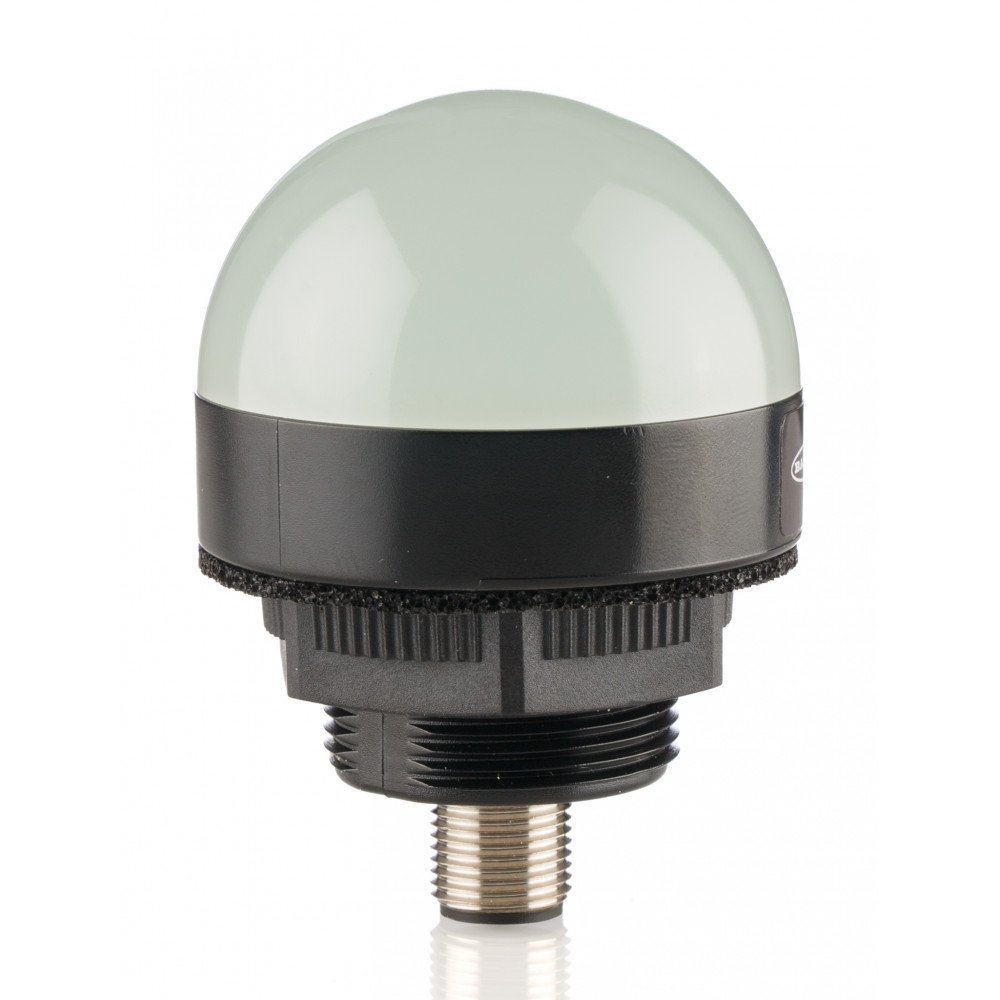

Banner K50L Series Green, Red, Yellow Beacon

Power

DC

IP Rating

IP67, IP69K

Display

No

Supply Voltage

18-30 V dc

Housing Style

Base Mount - Dome Window

Primary Housing Material

Polycarbonate

Indication

Yes

Mounting Thread

M30 x 1.5

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Number of Colors

3

Product Size (mm)

50

Color Technology

Standard LED

Color Option 1

Green

Animation Option 1

Solid On

Connection

Integral QD

Quick Disconnect Type

M12

Color Option 2

Red

Color Option 3

Yellow

Max Current Color (mA)

40

Number of Input Pins/Conductors

4

Input Type

PNP

Max Input Response Time (ms)

1

Physical Dimensions (LxWxH or DxH mm)

50.0 x 69.0

Environmental Rating

IP67; IP69K

High Temperature (up to 100° C)

50

Min Op. Temperature (°C)

-40

Primary Housing Color

Black

Primary Window Material

Polycarbonate Diffused

Feature: Washdown Rated

Yes

Feature: Encapsulated

Yes

Feature: Audible

No

Multi-Color Device

Single Color On

Feature: Quick Disconnect

Yes
